Data Structure and Algorithm Design II

Chapter 9

Xingang (Ian) Fang

Sections

  • Greedy Algorithms

Greedy Algorithms

Xingang (Ian) Fang

Outline

  • Overview

  • Related Algorithmic Paradigms

  • Applications

  • Bin Packing Problem (BPP)

  • Huffman Coding

Overview

  • An algorithm that makes the locally optimal choice at each stage with the hopes of finding the global optimum

  • Characteristics

    • Heuristic

    • Local optimum

    • Intuitive

    • No long term planning

    • Approximate, no guarantee to find the best solution

    • Less time complexity than exact algorithms

Related Algorithmic Paradigms

Greedy algorithms are related to backtracking because they both make decisions at each step.

Greedy

Backtracking

Approximate

Exact

Make a decision

Make a decision

Never look back

Look back

No long term planning

Long term planning

Less time complexity

More time complexity

May fail to find the best solution

Always find the best solution by finding all solutions

Applications

  • Suitable for optimization problems that are too complex to solve with exact algorithms.

  • Graph problems

    • Shortest path: Dijkstra’s algorithm

    • Minimum spanning tree: Prim’s algorithm, Kruskal’s algorithm

    • Graph coloring

  • Bin packing problem

  • Huffman coding

  • Activity selection problem

  • Fractional knapsack problem

Bin Packing Problem (BPP)

  • Given a set of items with different weights and bins with fixed capacity, find the minimum number of bins required to pack all items.

  • Formal definition

    • Items have size between 0 and 1

    • Bins have capacity 1

    • Each item must be packed into a bin

    • Minimize the number of bins used to pack all items

  • Classic combinatorial optimization problem

  • NP-hard problem

  • Applications in logistics, scheduling, resource allocation, etc.

  • Two variations of the problem

    • Online: Items arrive one at a time and must be immediately packed

    • Offline: All items are known in advance

Algorithms to Solve Bin Packing Problem

  • Exact algorithms

    • Brute force

    • Dynamic programming

    • Branch and bound

    • Integer linear programming

  • Approximation algorithms

    • Greedy algorithms

  • Why is not backtracking a good idea for solving BPP?

Baseline Solution

  • Brute force solution serves as the baseline solution

    • Create all possible permutations of items

    • Pack every permutation into bins in a deterministic order (e.g. online next fit)

    • Find the permutation that uses the fewest bins

  • Exercise

    • Which step is the determining factor for the time complexity of the algorithm?

    • What are the time complexities of each step?

Greedy Solution

Process items one by one, in each step, decide which bin to put the item in. Create a new bin if necessary.

  • Heuristics for online bin packing

    • Next Fit: only check the last bin

    • First Fit: check all previous bins for first fit

    • Best Fit: check all previous bins for best (tightest) fit

  • A simple greedy solution for offline bin packing:

    • Sort items in decreasing order of size

    • Pack items into bins using online method (first fit or best fit)

Huffman Coding

  • A lossless data compression algorithm

  • Variable length encoding

  • Based on the frequency of characters

  • Motivation

    • ASCII uses 8 bits to encode each character

    • Some characters are used more frequently than others

    • Less bits for more frequent characters to save space

  • Applications

    • Building-block for other algorithms

    • JPEG, MP3, etc.

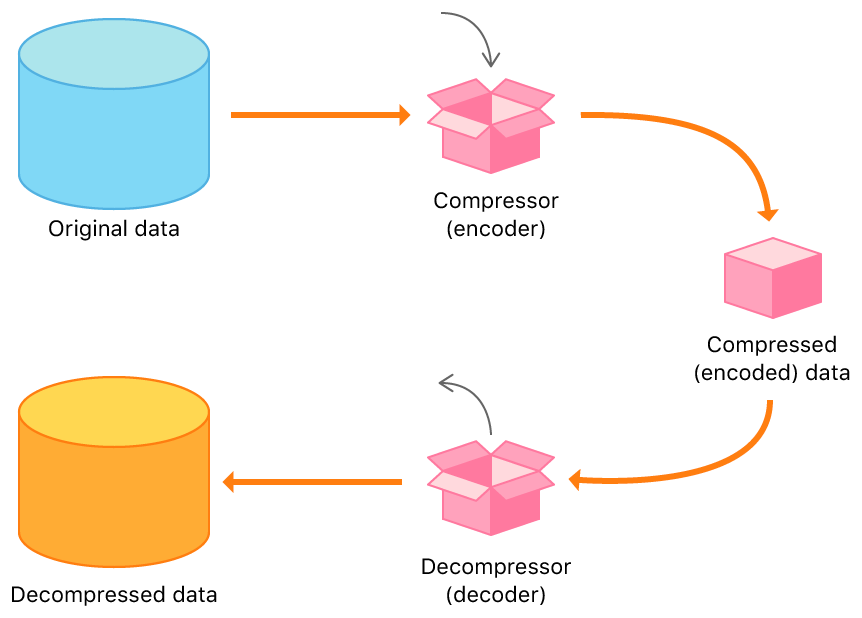

Data Compression

Credit: https://developer.apple.com/documentation/compression

Optimal Prefix Code

  • Huffman coding is an optimal prefix code

  • Prefix code (a.k.a. prefix-free code)

    • no code is a prefix of another code

    • no ambiguity when decoding

  • Optimal

    • Minimizes the expected length of the encoded message

    • The most frequent characters are encoded with the fewest bits

  • Employ a binary tree to represent the Huffman coding scheme

    • Full binary tree

    • Leaf nodes represent characters - guarantee prefix code

    • Each internal node means a bit in the codeword

Encoding Tree Examples

  • Left: Fixed length encoding

    Total space: 3 * (45 + 13 + 12 + 16 + 9 + 5) = 300 bits

  • Right: Huffman coding

    Total space: 1 * 45 + 3 * (13 + 12 + 16) + 4 * (9 + 5) = 224 bits

  • Contents in nodes:

    • Leaf node: <character>: <frequency>

    • Internal node: <frequency of subtree>

Prefix Coding Trees

Credit: Introduction to Algorithms, 4th Ed., T. Cormen et al.

Algorithm to build a Huffman coding tree

This is a greedy algorithm that builds the tree bottom-up from the least frequent characters to the most frequent characters.

Pseudo-code adopted from Wikipedia

  • Create a leaf node for each symbol and add it to the min priority priority queue.

  • While there is more than one node in the min priority queue:

    • Dequeue two nodes with the lowest frequencies from the min priority queue

    • Create a new internal node with these two nodes as its children and with frequency equal to the sum of the two nodes’ frequency

    • Add the new node to the min priority queue

  • The remaining node is the root node and the tree is complete

Steps to build the example tree

Steps to Build the Example Tree

Credit: Introduction to Algorithms, 4th Ed., T. Cormen et al.

Visualizing Huffman Coding

Encoding process visualization
