Programming Languages

Module 9: Implementing Subprogram; ADT; Object-oriented Programming Language

Xingang (Ian) Fang

Implementing Subprograms

  • Semantics of Calls and Returns

  • Simple Subprograms

  • Subprograms with Stack-Dynamic Variables

  • Nested subprograms

  • Blocks

  • Dynamic scoping

Semantics of Calls and Returns

  • Subprogram linkage

  • During call:

    • Save execution status

    • Compute and pass parameters

    • Transfer control

  • During return:

    • Handle out mode parameters

    • Restore execution status

    • Transfer control back

Simple Subprograms

  • “Simple” subprograms:

    • Cannot be nested

    • All local variables are static

    • Example: Early versions of Fortran

  • Actions for call:

    • Save execution status

    • Compute and pass parameters

    • Pass return address

    • Transfer control

  • Actions for return:

    • Handle out mode parameters

    • Return function value if needed

    • Restore execution status

    • Transfer control back

  • Distribution of actions between caller and callee

Activation Records

  • Purpose: Storage of information needed for subprogram execution

  • Contains:

    • Status information about caller

    • Parameters

    • Return address

    • Return value (for functions)

    • Temporaries

    • Local variables

Subprograms with Stack-Dynamic Variables

  • More complex implementation needed for:

    • Dynamic allocation/deallocation of locals

    • Support for recursion

    • Multiple simultaneous activations

  • Activation record instance contents:

    • Return address

    • Dynamic link

    • Parameters

    • Local variables

  • Run-time Stack: Manages activation record instances

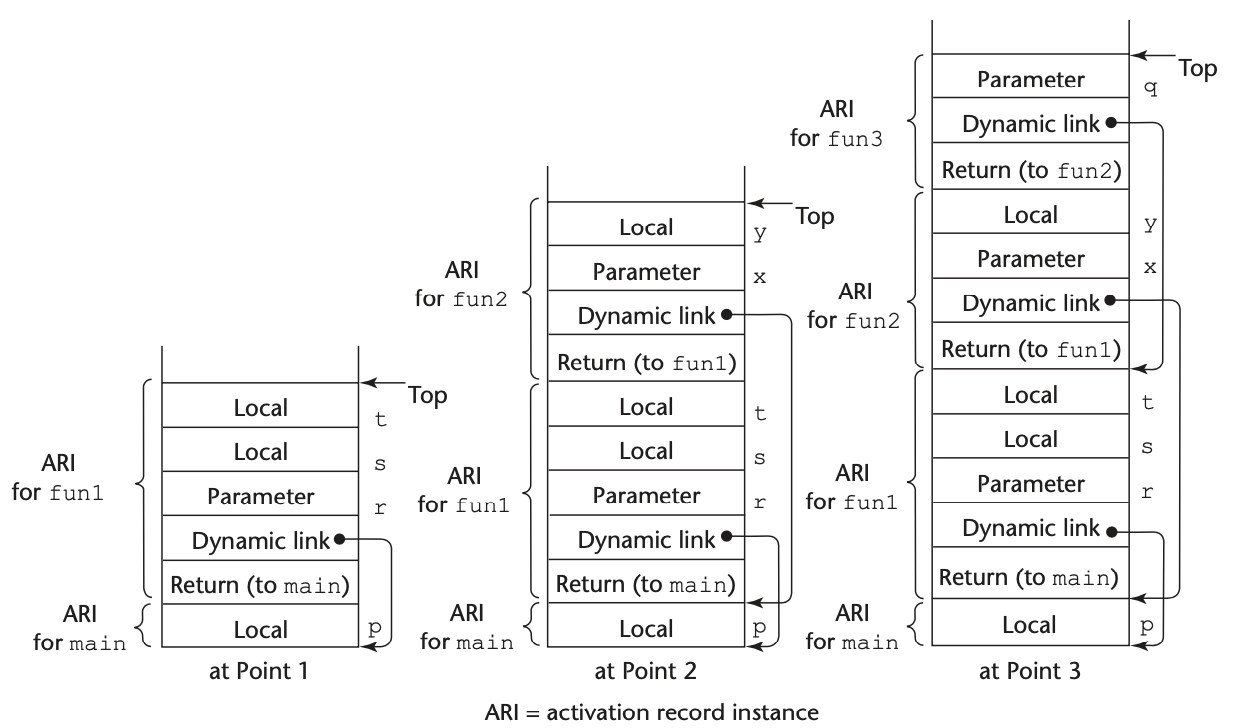

Demonstration: Stack and Subprogram Calls

Stack and Subprogram Calls

Credit: Textbook

Nested Subprograms

  • Nested subprograms:

    • Can be nested

    • Can access variables in outer scopes

  • Focus on static-scoped languages that support nested subprograms

  • Static scope

    • Variables accessed by name

    • Scope determined at compile time

    • Static links to access non-local variables

    • Static chain method

Static Chain Implementation

  • Adds static link to activation records

  • Links point to static parent’s activation record

  • Used for accessing nonlocal variables

  • Components:

    • Chain offset calculation

    • Local offset determination

    • Activation record traversal

Stack Chain Stack View

Credit: Textbook

Block Implementation

Two main approaches:

  1. Static Chain Method:

    • Treats blocks as parameterless subprograms

    • Creates activation records

    • Uses static links

  2. Simple Method:

    • Allocates block variables in activation record

    • Computes static offsets

    • More efficient for most cases

Practice Questions

  1. What are the key differences between simple and complex subprogram implementations?

  2. How does recursion affect activation record management?

  3. Compare static and dynamic scoping implementations.

  4. What are the tradeoffs between different block implementation approaches?

Abstract Data Type

  • The textbook chapter about abstract data type is focusing on the implementations only, and is not a comprehensive coverage of the topic.

  • You may read the textbook for language implementation details about abstract data type.

Support for Object-Oriented Programming

  • Introduction to object-oriented programming principles

  • Key design issues in OOP languages

  • Comparison of OOP implementations across languages:

    • Smalltalk, C++, Objective-C, Java, C#, Ruby

  • Implementation considerations for OOP constructs

  • Reflection in OOP languages

Fundamentals of Object-Oriented Programming

  • Three essential characteristics:

    • Abstract data types

    • Inheritance

    • Dynamic binding

  • Objects and Classes

    • Classes define objects (instances)

    • Objects have state (data) and behavior (methods)

  • Key Terminology

    • Methods: operations defined in classes

    • Messages: calls to methods

    • Message protocol: collection of methods of a class

Inheritance Concepts

  • Inheritance is central to OOP

    • Creates hierarchies of related classes

    • Allows code reuse and specialization

  • Inheritance hierarchy terms:

    • Base class/superclass/parent class

    • Derived class/subclass/child class

  • Inheritance enables:

    • Adding new variables/methods

    • Inheriting implementation and/or interface

    • Modifying inherited methods (overriding)

Types of Inheritance

  • Single Inheritance

    • A class inherits from one parent class

    • Creates tree-like class hierarchies

  • Multiple Inheritance

    • A class inherits from multiple parent classes

    • Creates graph-like class hierarchies

    • Can lead to ambiguities (e.g., diamond inheritance)

  • Alternatives to Multiple Inheritance

    • Interfaces (Java, C#)

    • Protocols (Objective-C)

    • Mixins/Categories (Ruby, Objective-C)

Class Members and Access Control

  • Instance vs. Class Members

    • Instance variables/methods: belong to each object

    • Class variables/methods: belong to the class itself

  • Access Control Modifiers

    • Private: visible only within the class

    • Protected: visible to the class and its subclasses

    • Public: visible to all client code

  • Relationship between inheritance and access control

    • Different languages handle inherited members differently

Dynamic Binding

  • Dynamic binding (dynamic dispatch):

    • Runtime determination of which method to call

    • Essential for polymorphism in OOP

  • Polymorphism through inheritance:

    • Variables can reference objects of different types

    • Method calls dynamically bound to appropriate implementation

  • Benefits:

    • Extensibility - new classes can be added without changing client code

    • Flexibility - behavior determined at runtime

Inheritance-based Polymorphism Demo

        classDiagram
    %% Shape Hierarchy
    class Shape {
        -string color
        +draw() void
        +area() double
    }

    class Circle {
        -double radius
        +draw() void
        +area() double
    }

    class Rectangle {
        -double width
        -double height
        +draw() void
        +area() double
    }

    class Triangle {
        -double base
        -double height
        +draw() void
        +area() double
    }

    Shape <|-- Circle
    Shape <|-- Rectangle
    Shape <|-- Triangle


    note "Inherite based Polymorphism:
    Shape *shape = new Circle();
    shape->draw(); // calls Circle::draw()
    shape->area(); // calls Circle::area()"

Inheritance-based Polymorphism

Key Design Issues for OOP Languages

  1. Exclusivity of objects

    • Are all data items objects, or just some?

  2. Are subclasses subtypes?

    • Can a subclass always be used where its parent is expected?

  3. Single vs. multiple inheritance

    • Benefits vs. complexity of multiple inheritance

  4. Object allocation and deallocation

    • Stack vs. heap allocation

    • Explicit vs. implicit deallocation

  5. Dynamic vs. static binding

    • When to use each approach?

  6. Nested classes

    • Visibility between nesting and nested classes

  7. Object initialization

    • Constructor calling mechanisms

OOP in Smalltalk

  • Pure object-oriented language

    • Everything is an object

    • All computation through message passing

  • Key characteristics:

    • Only single inheritance

    • All methods dynamically bound

    • All objects heap-allocated

    • No explicit deallocation (garbage collection)

    • No static typing (purely dynamic typing)

  • Historical significance:

    • First language to fully support OOP

    • Influenced GUI development

OOP in C++

  • Hybrid language (supports multiple paradigms)

    • Adds OOP to C’s procedural model

    • Maintains compatibility with C

  • Key characteristics:

    • Supports both single and multiple inheritance

    • Public, protected, private access control

    • Objects can be static, stack, or heap allocated

    • Explicit deallocation with delete

    • Dynamic binding optional (virtual methods)

  • C++ innovations:

    • Friend functions

    • Template-based generic programming

    • Abstract classes and pure virtual methods

OOP in Java

  • Pure OOP language with some imperative features

    • All user-defined types are classes

    • Primitive types for efficiency

  • Key characteristics:

    • Single inheritance for classes

    • Interface mechanism as alternative to multiple inheritance

    • All objects heap-allocated

    • Implicit deallocation (garbage collection)

    • Methods dynamically bound by default

    • All classes derived from Object

  • Java features:

    • No pointers (references instead)

    • No destructors (finalizers instead)

    • Inner classes (static and non-static)

OOP in C#

  • Similar to Java with additional features

    • Single inheritance plus interfaces

    • Value types (structs) and reference types (classes)

  • Key characteristics:

    • Methods must be explicitly marked virtual to be overridden

    • Overriding methods must be marked with override

    • All classes derived from Object

    • Properties for controlled access to fields

  • C# innovations:

    • Integration with .NET framework

    • Extension methods

    • Properties as first-class language features

OOP in Ruby

  • Pure object-oriented scripting language

    • Everything is an object

    • Dynamic typing

  • Key characteristics:

    • Single inheritance

    • All objects heap-allocated

    • All variables are references

    • All methods dynamically bound

    • All instance variables private

  • Ruby innovations:

    • Open classes (can be modified at runtime)

    • Mixins through modules

    • Blocks and iterators

    • attr_reader/attr_writer for automatic accessors

Object-Oriented Implementation Issues

  • Instance Data Storage

    • Class Instance Records (CIRs)

    • Layout of inherited members

  • Method Dispatch

    • Virtual method tables (vtables)

    • Method lookup in inheritance hierarchies

  • Implementation challenges:

    • Efficient method dispatch

    • Memory layout for subclasses

    • Multiple inheritance complexity

Reflection

  • Ability for a program to examine itself at runtime

    • Access to metadata about classes and objects

    • Dynamic invocation of methods

  • Reflection capabilities:

    • Introspection: examining structure of objects

    • Dynamic method calls

    • Creating new types/objects at runtime

  • Reflection in Java vs. C#:

    • Java: java.lang.Class and java.lang.reflect

    • C#: System.Type and System.Reflection

  • Tradeoffs:

    • Flexibility vs. performance

    • Static vs. dynamic type checking

Practice Questions

  1. What are the three essential characteristics of object-oriented programming?

  2. How does dynamic binding support polymorphism in OOP languages?

  3. Compare single and multiple inheritance. What alternatives to multiple inheritance exist?

  4. How do different languages handle object allocation and deallocation?

  5. What are the advantages and disadvantages of reflection in programming?

Summary

  • OOP supports modular, reusable code through objects and inheritance

  • Language design choices significantly impact:

    • How inheritance is implemented

    • Method dispatch mechanisms

    • Memory management approaches

    • Type system integration

  • Each language makes different tradeoffs:

    • Smalltalk: pure OOP, dynamic typing

    • C++: efficiency, static typing, multiple paradigms

    • Java/C#: managed environment, single inheritance

    • Ruby: dynamic, flexible, pure OOP

  • Understanding these design decisions helps select appropriate languages for different applications
